3G/4G full color led display Novastar asynchronous control system Multimedia Player TB3 TB2 TB4 TB6 TB8

Name: 3G4G full color led display Novastar asynchronous control system Multimedia Player TB3 TB2 TB4 TB6 TB8
Brand: JuCaiYuan
Price: 1 USD

Best 3G/4G full color led display Novastar asynchronous control system Multimedia Player TB3 TB2 TB4 TB6 TB8 wholesale

Brand Name : JuCaiYuan

Model Number : P6 P8 P10

Certification : CE/ROHS/FCC

Place of Origin : Shenzhen,China

MOQ : 1 Square meter

Price : negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10000sqm per month

Delivery Time : 3-25 working days after finished the payment

Packaging Details : Strong Carton Box, Standard Wood Case, Flight Case etc

product : Transparent P3.91 mm LED Display

Brightness : Over 5000nits

Warranty : 2 Years

Application : Indoor

Technology : Frontage-lighting

Screen Dimension : Customized

Material : Acrylic Frame Rental Led Wall

High Light : transparent led curtain display, glass wall led display

Contact Now

Products Description

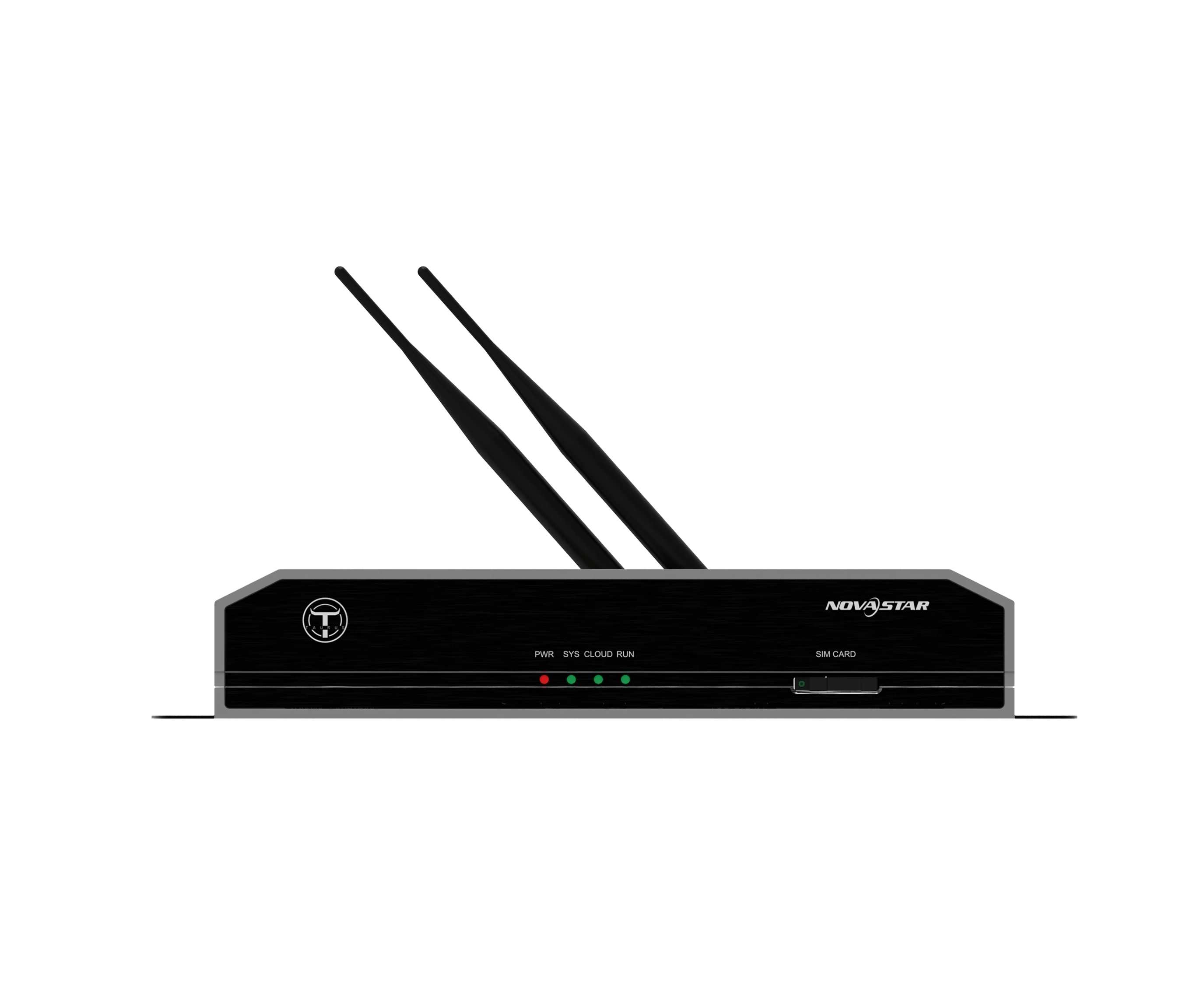

3G/4G full color led display Novastar asynchronous control system Multimedia Player TB3

Taurus series products are NovaStar's second generation of multimedia players dedicated to full-color LED displays,can be widely used in LED commercial display field, such as bar screen, chain store screen, advertising machine, mirror screen, retail store screen, door head screen, on board screen and the screen requiring no PC.


Features

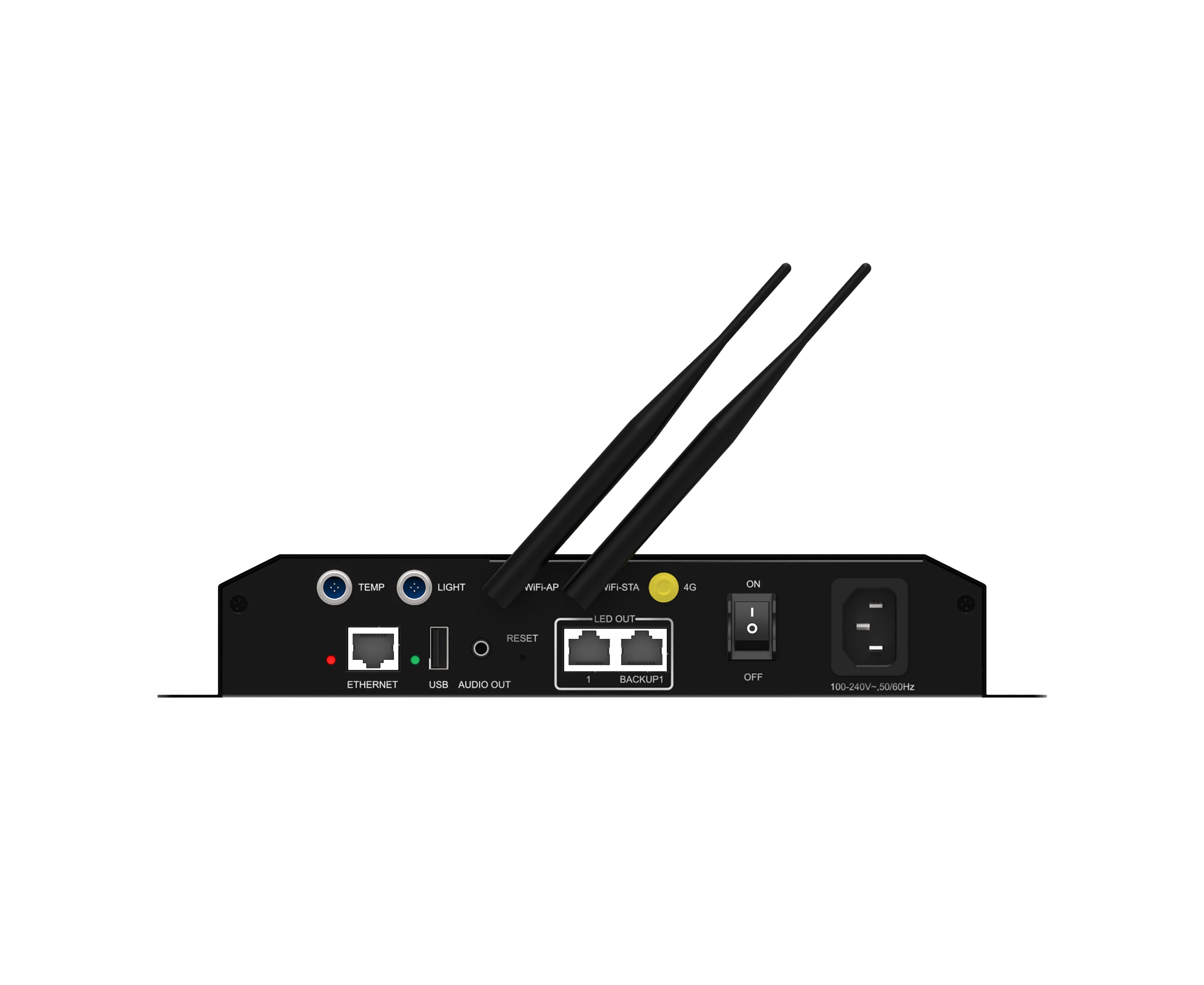

  Synchronization mechanism for multi-screen playing  Powerful processing capability  Comprehensive control plans  Dual-Wi-Fi mode  Redundant backup If the user has a high demand on synchronization, the time synchronization module is recommended. For details, please consult our technical staff. In addition to solution publishing and screen control via PC, mobile phones and LAN, the comprehensive control plans also support remote centralized publishing and monitoring. For Ethernet port redundancy, 1 master and 1 backup Ethernet ports are provided. Other Hardware Features  Loading capacity up to 650,000 pixels, with the maximum width of 4096 pixels and maximum height of 1920 pixels  Wired Gigabit Ethernet  Stereo audio output  1 USB port allowing for USB playback  On board light sensor connector allowing for automatic and scheduled brightness adjustment


Applications

Classification	Description
Market type	Advertising media: To be used for advertising and information promotion including bar screen and advertising machine. Digital signage: To be used for signage display in retail stores including retail store screens and door head screens. Commercial display: To display commercial information of hotel, cinema and shopping mall, such as chain store screens.
Networking mode	Independent screen: Use a PC or mobile client software to enable single-point connection and management of a screen. Cluster screen: Use the cluster solution developed by NovaStar to realize centralized management and monitor of multiple screens.
Connection type	Wired connection: A PC connects to Taurus through the Ethernet cable or LAN. Wi-Fi connection: PC, Pad and mobile phone can connect to Taunus through Wi-Fi, which can be enabled in the case without PC in conjunction with ViPlex software.

Specifications

Electrical Parameters	Input voltage	100 V–240 V AC
Electrical Parameters	Maximum power consumption	15W
Storage Space	Operating memory	2 GB
Storage Space	Internal storage space	8 GB on-board with 4 GB available for users
Storage Environment	Temperature	-40ºC–80ºC
Storage Environment	Humidity	0% RH–80% RH, non-condensing
Operating Environment	Temperature	-20ºC–60ºC
Operating Environment	Humidity	0% RH–80% RH, non-condensing
Packing Information	Dimensions (H×W×D)	375 mm × 280 mm × 108 mm
Packing Information	List	1 × TB3 2 × Wi-Fi omnidirectional antenna 1 × AC power cord 1 × Quick Start Guide
Dimensions (H × W × D)	278.5 mm × 139.5 mm × 45.0 mm
Net Weight	1301.9 g
IP Rating	IP20 Please prevent the product from water intrusion and do not wet or wash the product

Projects
